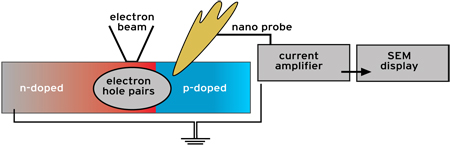

| EBIC: Electron
Beam Induced Current |
 |
| |
- The probe is used as a current imaging
device through a medium gain amplifier.
- Higher bandwidth
for faster imaging rates.
- Used to characterize PN
junctions and their dopant quality.
- Can be used for
planar EBIC or cross-sectional EBIC.
|
| |

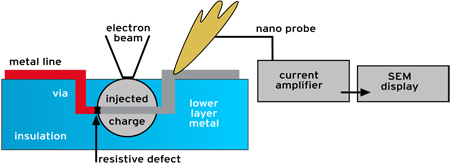

| EBAC:
Electron Beam Absorbed Current |
 |
| |
- The probe is used as a current imaging
device through a high gain amplifier.
- The user is looking for breaks
in metal lines that may be buried up to 3 or 4 layers deep.
- A quantitative form of active voltage contrast.
- Can achieve femto-level sensitivity.
|
|
